Features and Benefits
Topcon technology, higher power generation.
Even cloudy or foggy days, better weak illumination response.
Better temperature coefficient, more power generation.
Multiple weather, resistance tests, wider applicability.
High density packaging, improving energy density.
Zero LID, increase power generation.
Higher power output, lower bos cost.
Double-sided generation, powerfully energy boost.
Trustworthy Quality
100% Cells Sorting
Ensure Color and Power Difference. Ensure high yields, consistent performance and durability. First of 52 steps strict quality control and inspection process.
100% Inspection
Before and After Lamination. Most stringent acceptance criteria and tightest tolerance. Intelligent alarm and stop mechanism in case of any deviation or errors.
100% EL Testing
Before and Following Lamination. Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
100% Optional Testing
Ensure 3% Positive Power Tolerance. Comprehensive QC information management system with barcode ID. Quality traceable system in place to allow quality data flow constantly.
Production Information
|
N-type Modules |
||||
|
Module Type |
Power Range |
Maximum Efficiency |
Dimension |
|
|

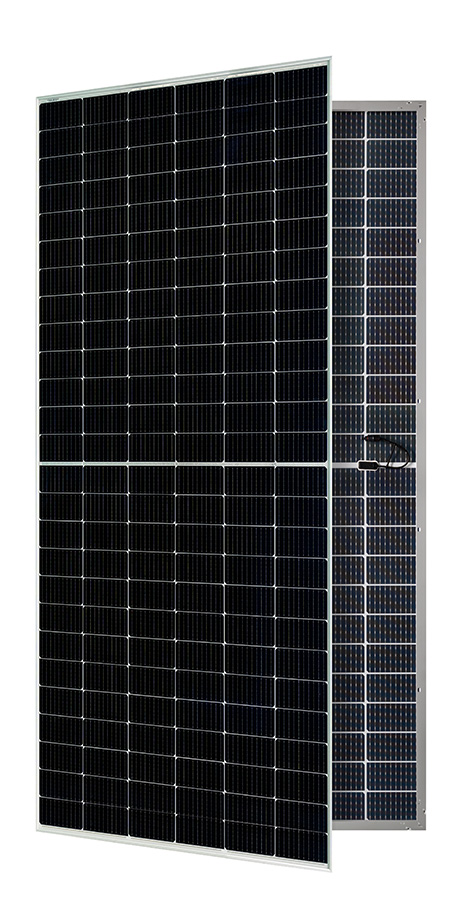

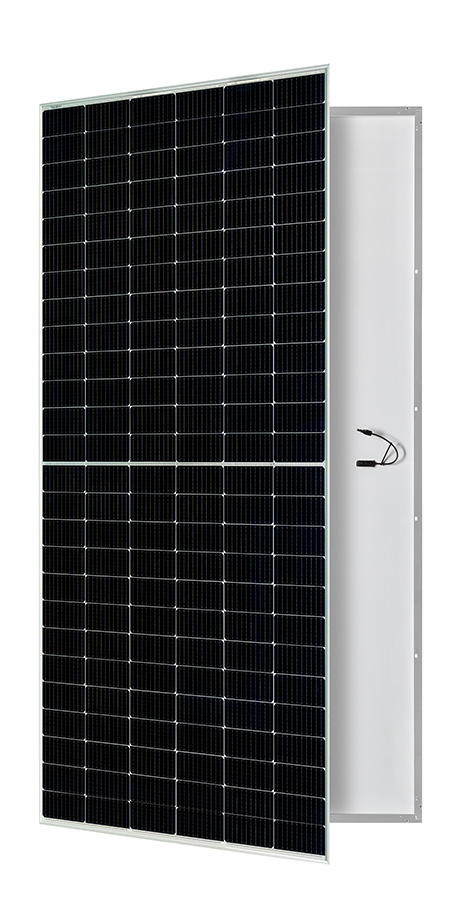

182 N-type Monofacial / Bifacial Module |
425W - 445W |
22.79% |
1722x1134x35/30mm |
|
|
475W - 495W |
22.87% |
1909x1134x35/30mm |
||
|
525W - 545W |
22.95% |
2094x1134x35/30mm |
||
|
575W - 595W |
23.03% |
2278x1134x35/30mm |
||
|
630W - 650W |
23.25% |
2278x1134x35/30mm |
||
|
210 N-type Monofacial / Bifacial Module |
570W - 590W |
22.02% |
1960x1303x35/30mm |
|
|
630W - 650W |
22.17% |
2172x1303x35/30mm |
||
|
700W - 720W |
22.32% |
2384x1303x35/30mm |
||
|

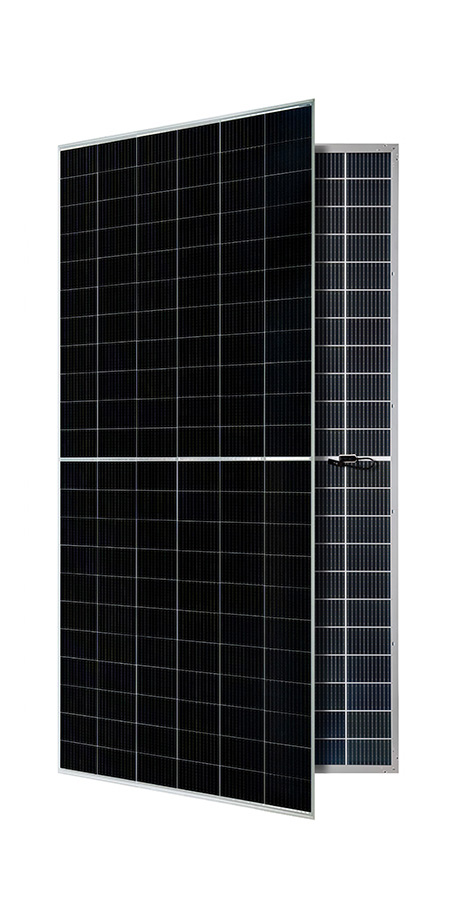

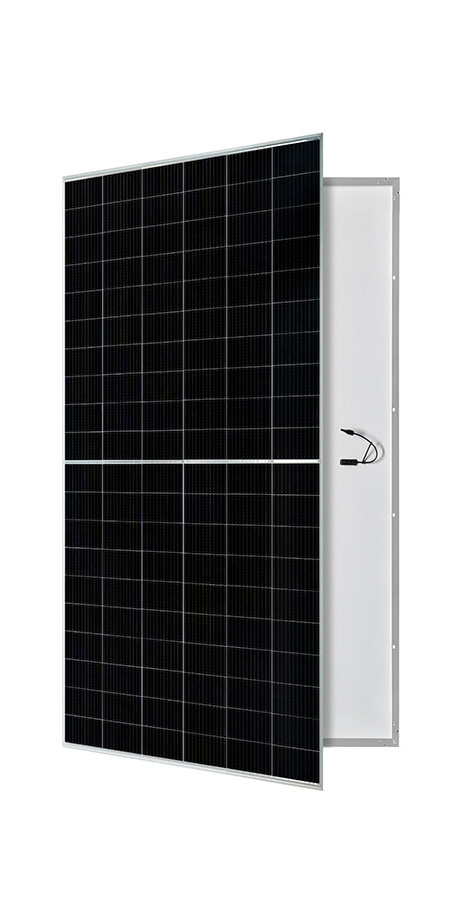

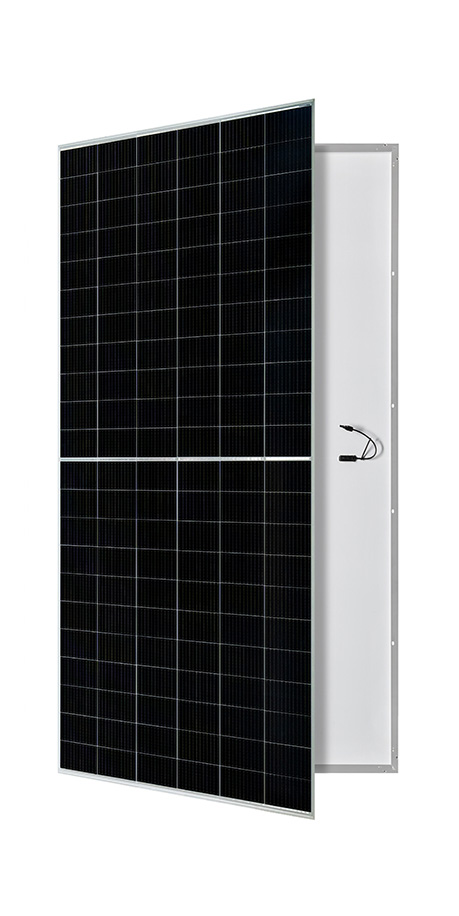

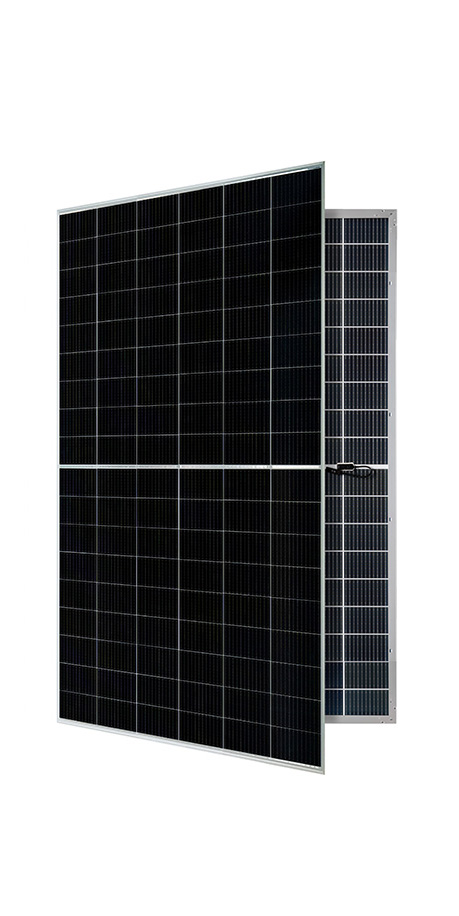

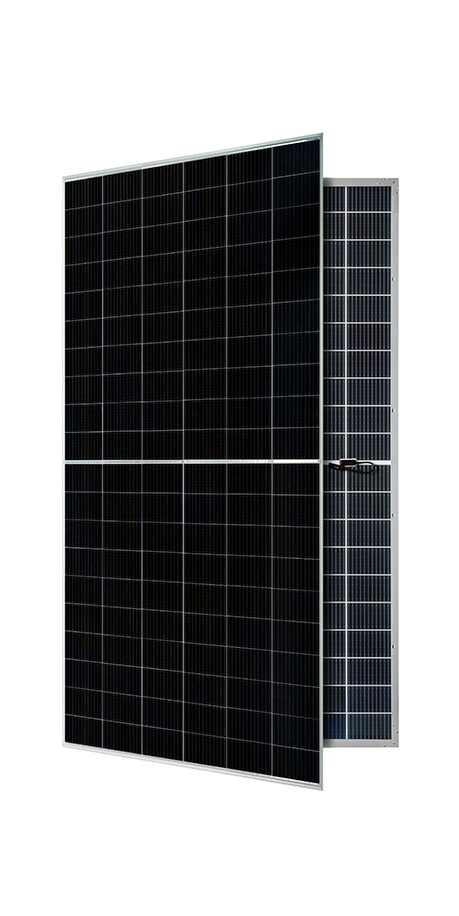

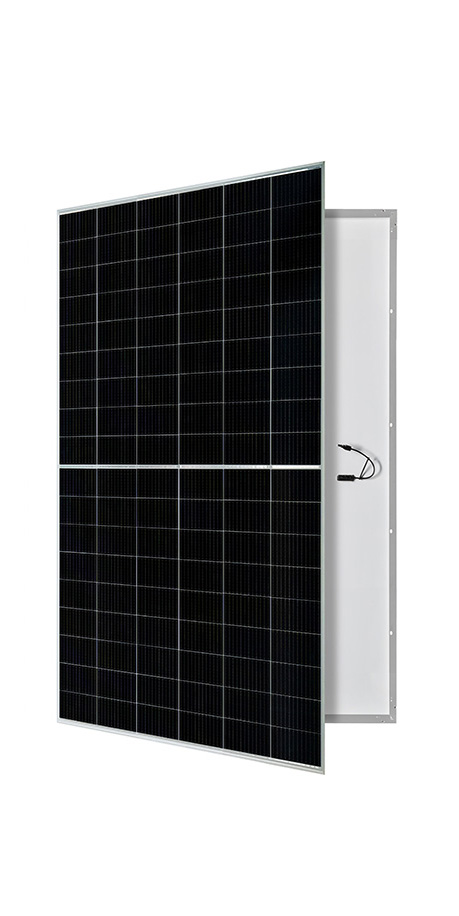

210R N-type Monofacial / Bifacial Module |
490W - 510W |
22.02% |
1960x1134x35/30mm |
|
|
545W - 565W |
22.17% |
2172x1134x35/30mm |
||
|
595W - 615W |
22.32% |
2384x1134x35/30mm |
||
See datasheet for details
FAQ
The cell technology, the TopCon cell is a type of photovoltaic silicon cell. In recent years, because of its high conversion efficiency, low attenuation performance, high volume-to-price ratio and other obvious advantages, gradually adopted by industry enterprises.
The theoretical limit efficiency of TopCon solar cells is up to 28.7% , which is the closest to the theoretical limit efficiency of crystalline silicon solar cells (29.43%) , much higher than that of PERC (24.5%).
The TopCon module currently has a price gap of about ¥0.1-¥0.15/WP with P-type module, or about $0.02 USD.
The type of connection is the same but the technology of production is different.
