Mounting system in the solar panel industry is crucial for securing solar panels to various surfaces, ensuring stability and optimal positioning for sunlight exposure. These systems include rooftop mounts, ground mounts, and pole mounts, each designed to withstand environmental conditions and maximize energy capture. LESSO mounting systems offer durability and flexibility, accommodating different panel sizes and installation angles. We are committed to providing reliable solar installation system solutions for the world.

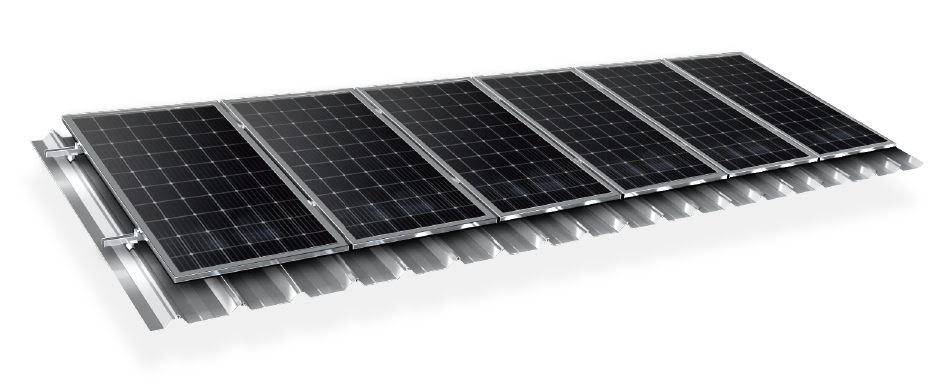

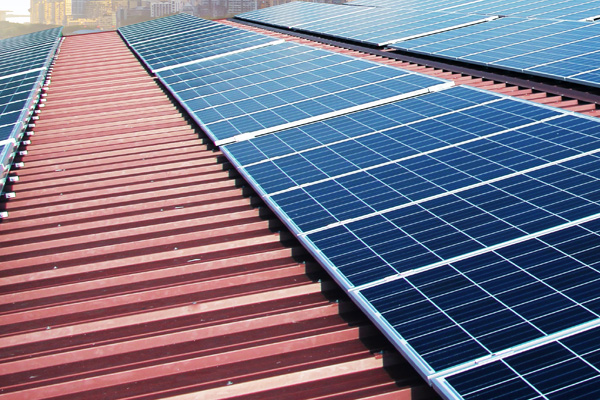

Solar Mounting System for Color Steel Tile Roof
The solar mounting system for color steel tile roof is suitable for distributed power stations. It consists of aluminium profiles making it very light, with low loading requirements for the roof.
Features and Benefits
Installation Location |
Snow Load |
Material |
Service Life |
| Color Steel Tile Roof | 70kg/m2 | Aluminum Profile | 25 Years |
Drawing Force |
Wind-bearing Capacity
|
Mounting Type |
Color |
| 1000N | 40m/s, 32.5kg/m2 , level 13 | Frame | Natural Color |
Solar Mounting System for Concrete Roof
The solar mounting system for concrete roof is suitable for solar power stations installed on the ground or on concrete roofs. It features good wind resistance and is highly cost effective, and able to meet most customer demands.
Features and Benefits
Installation Location |
Snow Load |
Material |
Service Life |
Drawing Force |
| Flat Ground / Roof | 14KN/m2 | Carbon Steel | 25 Years | 1000N |
Wind-bearing Capacity |
Surface Treatment |
Specification of PV Modules |
PV Module Layout |
Inclination Angle of Modules |
| 40m/s | Hot-dip Galvanizing / Aluminum-Zinc-Magnesium Alloy Coating | All Specifications Supported | Horizontal / Vertical | As per customer requirements |
Solar Mounting System for Glazed Tile Roof
The solar mounting system for glazed tile roof is suitable for distributed power stations. It features stainless steel hooks and aluminum profiles for strong adaptability to different types of glazed tile roofs and low loading requirements.
Features and Benefits
Installation Location |
Snow Load |
Material |
Service Life |
| Glazed Tile Roof | 70kg/m2 | Aluminum Profile | 25 Years |
Drawing Force |
Wind-bearing Capacity
|
Mounting Type |
Color |
| 1000N | 40m/s, 32.5kg/m2 , level 13 | Frame | Natural Color |
Solar Mounting System for Agriculture and Aquaculture Farm
The single column solar mounting system is suitable for solar power stations for agriculture and aquaculture farms and large mountain solar power stations. It has low requirements in terms of terrain, strong adaptability to a variety of complex environments, and convenient installation, meeting most customer demands.
Features and Benefits
Installation Location |
Snow Load |
Material |
Service Life |
Drawing Force |
| Fish ponds or ground-based | 0.5KN/m2 | Carbon Steel | 25 Years | 1000N |
Wind-bearing Capacity |
Surface Treatment |
Specification of PV Modules |
PV Module Layout |
Inclination Angle of Modules |
| 40m/s | Hot-dip Galvanizing / Aluminum-Zinc-Magnesium Alloy Coating | All Specifications Supported | Horizontal / Vertical | As per customer requirements |
BIPV Water-proof Solar Mounting
The BIPV mounting is suitable for sun rooms with concrete roofs, BIPV commercial plants, and waterproof PV carports.
Features and Benefits
Installation Location |
Material |
Service Life |
Snow Load |
| Plants, Carports and Sun Rooms | Zinc-Aluminum-Magnesium, Aluminum Alloy, Stainless Steel | 25 Years | As per project requirements |
Wind-bearing Capacity |
Installation Angle
|
PV Module Layout
|
Specification of PV Modules |
| As per project requirements | As per project requirements | Horizontal / Vertical | As per project requirements |
