LESSO's Micro inverter is an ideal solution for residential and small commercial settings. It allows for the connection of up to four solar panels per unit, facilitating individual monitoring of each panel's output. Each branch circuit can accommodate up to four of these Micro inverter, operating at a maximum voltage of 230V. Additionally, the LSMT2000TL comes with integrated WiFi and Bluetooth functionality for straightforward installation and servicing. It also enhances the ability to monitor and communicate system performance, providing users with the capability to track the productivity of each panel in real-time and quickly detect any problems or under performance.
Module level monitoring
Customizable various input (DV PV) voltage range
Wifi communication and cloud monitoring
The external antenna can be used to enhance communication with the DTU
Wide MPPT voltage range
Up to 4 units (230V) per branch
Superb Safety & Reliability

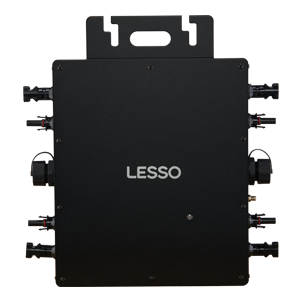

The LSMT2000TL is an efficient Micro inverter designed for use with single-phase 230V grids. Each branch can accommodate up to two units of the same model inverter, equipped with 3x2.5mm² AC cables. Each inverter can handle a maximum DC input power of 2000W, corresponding to a maximum output power of 4x500W from the solar panels. To ensure normal operation of the device, the VOC value of the solar panels should not exceed the maximum allowable DC input voltage of the inverter.
