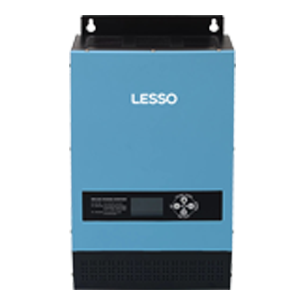

Off-grid Inverter LSOTH1-6kW

LESSO Off-grid Inverter

LSOTH1-6kW

1-6kW | Split phase | Off-grid

LSOTH1-6KS-M01

LESSO's off-grid inverter with MPPT is a crucial component for independent solar power systems. It converts DC power from solar panels into AC power, suitable for household use, while optimizing the energy harvest through MPPT technology. This technology ensures the solar panels operate at their optimal power output, adjusting to changing sunlight conditions. Ideal for remote or standalone applications, off-grid inverters with MPPT enhance energy efficiency and reliability, ensuring consistent power supply even in varying weather, making them indispensable for sustainable energy solutions.

储能逆变器系列 icon_7.多分支(单元)s

Split phase output

0703icon-2

Toroidal low-loss transformer, high inverter efficiency, pure sine wave output

0703icon-1

Intelligent LCD integrated display

储能逆变器系列 icon_9.易安装s

 Added fault code query function to facilitate users to monitor operating status in real time

储能逆变器系列 icon-28.智能充电器设计

Mains charging current is adjustable, allowing users to configure battery capacity more flexibly

储能逆变器系列 icon_23.支持多方向系统设计s

Three working modes can be set (AC mode, battery mode, energy saving mode)

Performance Advantages

An off-grid inverter with MPPT boasts features like efficient DC to AC conversion, advanced MPPT technology for optimal solar energy harvest, and robust battery management. It adapts to changing sunlight conditions, maximizing energy output. Advantages include enhanced energy efficiency, reliable power supply in remote areas, and improved system performance. These inverters are essential for sustainable, off-grid energy solutions, providing consistent power even in fluctuating weather, reducing dependency on the grid, and supporting eco-friendly living.

Model: LSOTH1KS-M01
Rated Power: 1000W
Peak Power (20ms): 3000VA
Battery Voltage: 12/24/48VDC
Max AC charging current: 0~30A (Depending on model)
Dimension: 500 × 300 × 140mm
Weight: 12kg



Model: LSOTH3KS-M01
Rated Power: 3000W
Peak Power (20ms): 9000VA
Battery Voltage: 24/48VDC
Max AC charging current: 0~30A (Depending on model)
Dimension: 500 × 300 × 140mm
Weight: 20kg



Model: LSOTH6KS-M01
Rated Power: 6000W
Peak Power (20ms): 18000VA
Battery Voltage:48VDC
Max AC charging current: 0~30A (Depending on model)
Dimension: 530 × 335 × 150mm
Weight: 26kg



See datasheet for details
