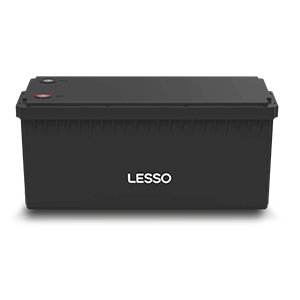

Battery Module LSMO3kWh

LESSO Battery Module

LSMO 3kWh

3kWh | Low voltage battery

LSMO25.6V120AH

LSMO Battery Module be mainly used in electric mobility; Solar/wind energy storage system; UPS backup power; Telecommunication; Medical equipment; Lighting.

battery module (1)

Life than lead acid battery

battery module (2)

Automatic protection with internal battery management system

battery module (3)

Up to four batteries in parallel

battery module (4)

About 40% of the weight of a comparable lead acid battery

Performance Advantages

This battery module offers a longer cycle life than lead-acid batteries, reducing replacement and ownership costs. It is 40% lighter and serves as a direct "drop-in" replacement for lead-acid batteries. With twice the power output, even at high discharge rates, it maintains excellent energy capacity. Superior safety features include an internal battery management system that protects against overcharging, short circuits, and impacts. The lithium iron phosphate chemistry further eliminates explosion risks. Its modular design allows for flexible deployment, supporting up to two batteries in series and four in parallel.

Model: LSMO 25.6V120AH
Battery type: LiFePO4
Nominal energy: 3.072kWh
Nominal voltage: 25.6V
Nominal capacity: 120Ah
Nominal charging / Discharging current: 100A / 100A
Installation: Series and parallel connection

See datasheet for details
